MPS148A

Rated AC Power: 100W
AC Output Voltage: 110V/220V/230V
Output Frequency: 50/60Hz
Battery: Lithium ternary battery (148Wh/40000mAh)
DC Outputs: USB-A (2.4A*2), Type-C (5V/9V/12V/2.1A), DC5521 (12V-16.6V/10A)
Interface Compatibility: US-Japan/Universal/European *2
Modified Sine Wave output for smooth operation of electrical devices.
Compact Design: Single size of 210mm x 90mm x 190mm, weight 1.64kg.
Portable: Gross packing weight of 9.5kg for 4 units.

Product Overview

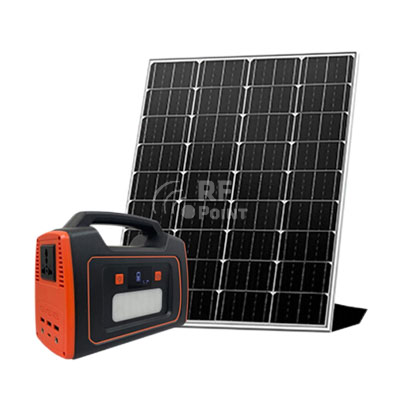

The MPS148A is a versatile, compact, and reliable portable power station equipped with a 40Wp polycrystalline solar panel and a 148Wh lithium ternary battery (40000mAh). This unit provides 100W AC output, USB charging ports, and a DC output, making it a reliable energy solution for various applications. It is designed for easy portability with a lightweight build, offering a seamless power backup option for outdoor activities and emergency situations.

Key Features

Polycrystalline Solar Panel: 40Wp power output, efficient energy generation for various devices.
Lithium Ternary Battery: 148Wh (40000mAh) capacity for long-lasting power supply.
AC Output: 100W, with selectable output voltages of 110V/220V/230V, 50/60Hz, and modified sine wave for safe device compatibility.
Multiple Charging Ports:
- USB-A: 2.4A output, dual ports.
- Type-C: 5V/9V/12V/2.1A output, ideal for fast charging modern devices.
- DC5521 Output: 12V-16.6V/10A for powering small appliances or charging car accessories.
Compact and Lightweight Design: Dimensions of 210mm x 90mm x 190mm, weight of 1.64kg, making it easy to carry and store.
Efficient Charging: 19V/1.5A adapter for fast recharging.
Portable and Durable: Ideal for outdoor activities and emergency use.

Applications

Outdoor Adventures: Perfect for camping, hiking, and road trips where access to a traditional power source is limited.
Emergency Backup Power: A reliable power supply during power outages, keeping essential devices powered.
Portable Power for Devices: Charge smartphones, tablets, laptops, and other USB-powered gadgets during travel.
Home Backup for Low-Power Devices: Use as a backup for lights, fans, or small household devices during grid failures.
Solar Power Systems: Can be used to recharge using solar panels for sustainable energy, reducing reliance on the grid.

For more information, please contact RF Point.

Techinical Information
Photos

Model number		MPS-148A
Electrical parameters
Polycrystalline module	Rated power	40Wp
AC Output	Rated power	100W
	Output voltage	110V/220V/230V
	Output frequency	50/60Hz
	Output waveform	Modified sine wave
	Interface	(US-Japan/Universal/European) *2
Battery	Battery type	Lithium ternary
Battery	Battery capacity	148Wh(40000mah)
DC output	USB-A output	USB-A/2.4A*2
	TYPE-C output	5V/9V/12V/2 1A
	DC5521	12V- 16.6V/10A
Physical Parameters
Single size		210mm90mm190mm
Single weight		1.64KG
Packing Size		485mm305mm260mm
Gross packing weight		9.5kg
Package Quantity		4pcs
Adapter Specifications		19V/1.5A ( DC:35135)

Block Diagram Description

Solar Input Section:
- Solar Panel: 40Wp polycrystalline module that charges the internal battery.
- Charge Controller: Manages power from the solar panel to charge the internal battery efficiently.
Battery Management System (BMS):
- Lithium Ternary Battery: 148Wh (40000mAh), stores energy for later use.
- Battery Protection: Ensures safe charging and discharging by preventing overcharging, overdischarging, and short circuits.
Inverter Section:
- DC to AC Inverter: Converts stored DC power from the battery into AC power.
- Output Voltage: 110V/220V/230V AC, 50/60Hz, with a Modified Sine Wave output.
- AC Outlet: Provides power for small household devices and electronics.
USB & DC Output Section:
- USB-A Outputs: Dual 5V, 2.4A charging ports for mobile devices and electronics.
- Type-C Output: 5V/9V/12V/2.1A for fast-charging compatible devices.
- DC5521 Output: 12V-16.6V, up to 10A, for powering car accessories, DC appliances, or small gadgets.
Power Input Section:
- DC Charging Input: Via 19V/1.5A adapter for charging the battery from a wall outlet or car power supply.
Monitoring & Control System:
- Battery Monitoring: Displays battery charge level and system status for user monitoring.
- LED Indicators: Indicate battery status, charging progress, and operational state.
Power Distribution:
- Power Distribution Circuitry: Distributes power to various output ports (AC, USB, DC) as needed by the user.

For more information, please contact RF Point.

MPS 222A

The MPS 222A is a high-performance portable power station with a polycrystalline solar panel and lithium ternary battery for efficient energy storage. Featuring AC (100W), USB (5V/2.4A), and Type-C (5V/9V/12V/2.1A) outputs, it is ideal for charging small devices and running low-power electronics. Its modified sine wave inverter ensures compatibility with various appliances. The 148Wh lithium battery provides reliable off-grid power, making it perfect for camping, outdoor activities, or emergency backup.

MPS 333A

The MPS 333A is a versatile portable power station offering 333W AC output with a pure sine wave inverter for stable and reliable power delivery. Equipped with solar panel input, USB-A (2.4A), and Type-C (2.1A) outputs, this unit can charge multiple devices simultaneously. It comes with a lithium ternary battery (300Wh) for extended power use, ideal for outdoor activities, power tools, or as an emergency power source.

MPS 300W

The MPS 300W is a robust portable power station designed to power devices up to 300W. Featuring a pure sine wave inverter, it provides clean, stable energy for sensitive electronics. The unit includes USB, Type-C, and AC outlets, making it highly adaptable for various charging needs. With a 300Wh lithium battery and solar charging input, it's ideal for outdoor enthusiasts, campers, and off-grid applications requiring reliable and safe power.
